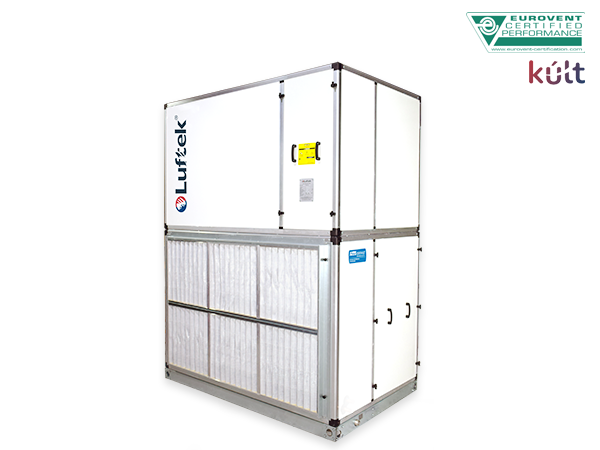

Smart Unit

The unit comes with an inbuilt control panel, control valve, and sensors. With its intelligent controller, the unit saves energy by controlling the fan and chilled water valve based on the load requirement. The unit is BMS compatible with MODBUS or BACnet protocol. The HMI unit gives more flexibility to the client to set and view the parameters with a touch of a button.

Salient Features

  • AHU meets the best ratings as per EN1886 standard certified by EUROVENT.
  • Units complying to ENISO9223 standard
  • AHRI 410 certified cooling and heating coils
  • Fans are certified for AMCA 210 on performance and AMCA 300 for sound
  • ISO16890 / EN779 certified filters
  • EC Fans for energy saving
  • EN1886 Rating (502LK SERIES)
  • a. Thermal Conductivity – T2 b. Thermal Bridging – TB2 c. Casing Strength – D1 d. Casing Leakage – L1 e. Filter Bypass leakage – F9
  • Air Flow range : 1000 to 42000 CFM
  • 50mm thick double skin panels
  • Extruded Aluminium construction for Frame work with Thermal Break.
  • Injected Polyurethane foam insulated panels.
  • Rockwool insulation as option.
  • Stainless Steel drain pan for condensate removal.
  • Outer precoated sheet and inner plain galvanized sheet casing.
  • Aluminium and Stainless steel sheet as options.
  • Motors are of IE2 / IE3 efficiency with IP55 protection and class F insulation.
